Products & Components
Zurück zur deutschen Version dieser Seite.
- ARTEMIS sailing canoe plans
- ARTEMIS sailing canoe kit
- Reduced ARTEMIS kit
- HUGH HORTON VENICE seat plans
- ARTEMIS sailing canoe, ready to sail
- ARTEMIS or BUFFLEHEAD sailing canoe, hull
- 5.4 sqm dacron sail (BUFFLEHEAD specification)
- Carbon mast for the 5.4 sqm dacron sail
- Alu-carbon boom with fittings and lines for the 5.4 sqm dacron sail
- Sheet & traveller, halyard & mast steps for the 5.4 sqm dacron sail
- Lashing fittings / D-rings
ARTEMIS sailing canoe plans
 |
 |
 |
 |
| Plans for the ARTEMIS sailing canoe.
4,85 m x 77,5 cm (15'11" x 30"). Hardcopy, in English language. Dimensions are metric. The plan includes the licence to build one boat. 15 plan sheets, some of them with 1:1 drawings. Hull and deck are made without molds in "stitch-and-glue" style from 3 mm or 4 mm plywood. A comprehensive list of materials and a 40-pages building key with lots of pictures are provided as a CD. Plans and building instructions for the HUGH HORTON VENICE seat are included. |
| ARTEMIS plans: This price is valid until 30.06.2024 |
ARTEMIS sailing canoe kit
 |
 |
 |
 |
 |
 |
| Kit for the ARTEMIS sailing canoe.
4,85 m x 77,5 cm (15'11" x 30"). The kit contains all plywood, plastic and metal parts for an ARTEMIS sailing canoe, rudder, leeboard and a HUGH HORTON VENICE seat. Rig and sails, epoxy, standard glass fabric, some wooden slats from the hardware store, paint and varnish, consumables and buoyancy are not included in the kit. A list of all parts that you need to purchase yourself can be found here. There are three different options for rig and sails. The more than 100-page building instructions are available in german language only. They are so detailed that this boat can be built by beginners. The first parts of the instructions can be downloaded for free here. Construction time is about 120 hours. |
| ARTEMIS sailing canoe kit, planks from 4 mm plywood for a cartop
weight of about 27 kg: CHF 1'450.- plus shipping |
| ARTEMIS sailing canoe kit, planks from 3 mm plywood for a cartop
weight of about 23 kg: CHF 1'650.- plus shipping These prices are valid til 30.06.2024 |
Reduced ARTEMIS kit
| The reduced kit contains all plastic and metal parts for one
ARTEMIS sailing canoe and for one HUGH HORTON VENICE seat, including gear and hardware for the
leeboard mounting mechanism, mast foot, rudder gudgeons, rudder blade and -shaft and complete deck stainless steel
hardware (except cleats for halyard and downhaul). Specify whether you need a kevlar woven 45° band as a sheer strake or whether you prefer a handfull of small brass wood screws for a traditional wooden sheer strake instead. Wooden planks for hull, deck and the leeboard are not included in this kit. Shipped as standard international parcel. |
| Reduced ARTEMIS kit: CHF 470.- plus shipping This price is valid until 30.06.2024 |
HUGH HORTON VENICE seat plans
 |
 |
 |
 |
| The goal for the seat is comfort for an eighteen hour day, whether
paddling and/or sailing. Overall building time is a day or so, and finishing takes another half day. The seat is a very rewarding project, and if you have fun with it, you might be able to build a boat, too. Plans are metric and an english 8-pages building description with photos is included. Available as PDF version which will be emailed. Please specify whether you would prefer an A3 or a tabloid print format. |
| HUGH HORTON VENICE seat plans are free.
Just mail me for a copy. This price is valid until 30.06.2024 |

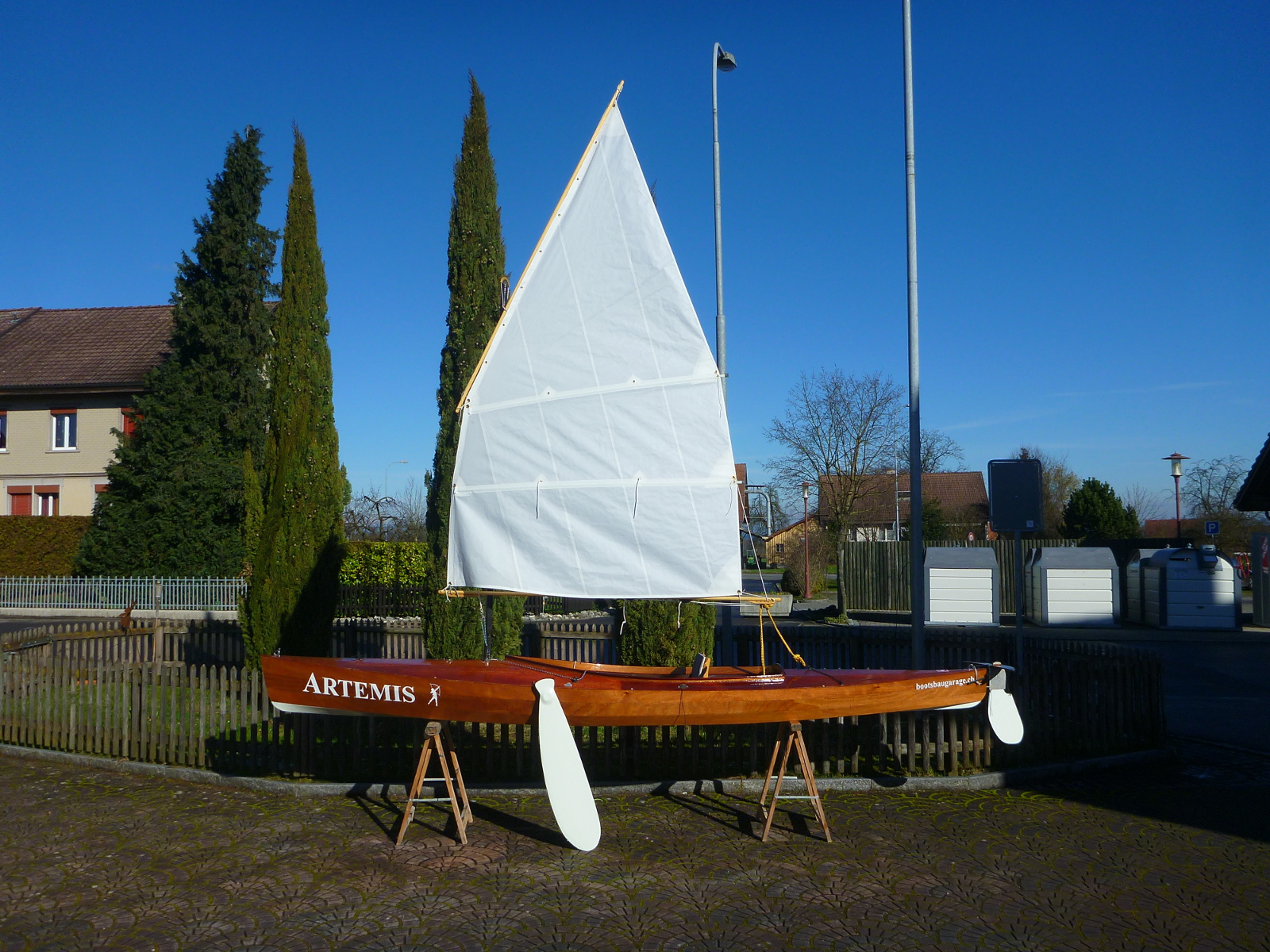

ARTEMIS sailing canoe, ready to sail
 |
|
| ARTEMIS sailing canoe with 5.4 sqm dacron sail, complete and
ready to sail. 4,85 m x 77,5 cm (15'11" x 30"). Configuration and details largely depend on owner's specification. |
| ARTEMIS sailing canoe, ready to sail: CHF 8'750.- plus shipping This price is a target price |

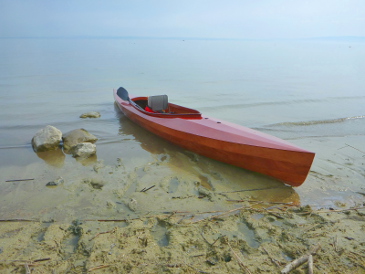

ARTEMIS sailing canoe, hull
BUFFLEHEAD sailing canoe, hull
 |
 |
 |
 |
| ARTEMIS sailing canoe or BUFFLEHEAD sailing canoe, hull without deck. 3 or 4 mm okoume ply, glassed with epoxy inside and outside. Build the rest of the boat yourself! |
| ARTEMIS sailing canoe, hull from 4 mm plywood: CHF 2'050.- plus shipping |
| ARTEMIS sailing canoe, hull from 3 mm plywood: CHF 2'250.- plus shipping |
| BUFFLEHEAD sailing canoe, hull from 4 mm plywood: CHF 2'050.- plus shipping |
| BUFFLEHEAD sailing canoe, hull from 3 mm plywood:
CHF 2'250.- plus shipping These prices are valid until 30.06.2024 |

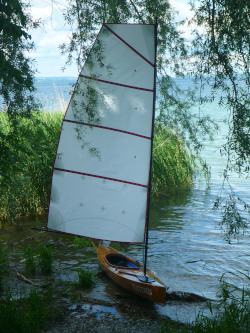

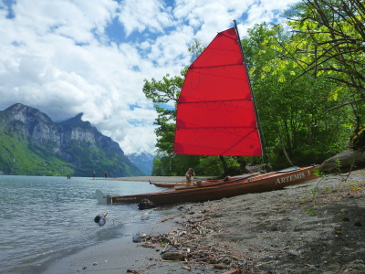

5.4 qm dacron sail (BUFFLEHEAD specification)
 |
 |
 |
 |
| 5.4 sqm 3 oz/sqm dacron sail (BUFFLEHEAD specification), in red or
white. The sail is fully battened to support its perfect shape. It has three ingenious single-handed reefs: 3.7 / 2.4 sqm and a very small area for use as an auxiliary sail in strong winds. This is how a cruising sail / regatta sail should look like: generously reinforced in the heavily stressed areas and around eyelets, light and incredibly robust. Roll the sail after use and stow it in a long sail bag. Luff length: 325 cm, foot length: 227 cm, weight: 1,600 g. European quality dacron. Sail is made in Switzerland. |
| 5.4 sqm sail (BUFFLEHEAD specification): CHF 980.-
plus shipping This price is valid until 30.06.2024 |
Carbon mast for the 5.4 sqm dacron sail
 |
 |
|
|
|
| Here is an interlocking carbon mast for the 5.4 sqm dacron sail.
Three mast segments, therefore can be stored compactly in the boat, separate masthead, floatable.
The lower part is strongly built, reinforced at deck level, the middle part is medium weight, the top part is
particularly lightweight. All of them are sealed with foam. Carbon inner sleeves as connecting pieces in the lower
and middle parts. Inner diameter 38 mm. Delivery without halyard. Manufactured in Switzerland. Total length 420 cm, other lengths on request. Total weight approx. 2'000 g. |
| Carbon mast: CHF 980.- plus shipping This price is valid til 30.06.2024 |
Aluminium-carbon boom with fittings and lines for the 5.4 sqm dacron sail
 |
 |
 |
|
| The ultimate boom for the 5.4 sqm dacron sail.
Two parts with interlocking aluminium sleeve, so can be easily stowed in the boat. Fully equipped with all fittings
and lines: luff downhaul, outhaul, solid low-friction sheet sheave. Manufactured in Switzerland. Total length 2420 cm, other lengths on request. Total weight approx. 1´450 g. |
| Aluminium-carbon boom with fittings and lines: CHF 520.-
plus shipping This price is valid til 30.06.2024 |

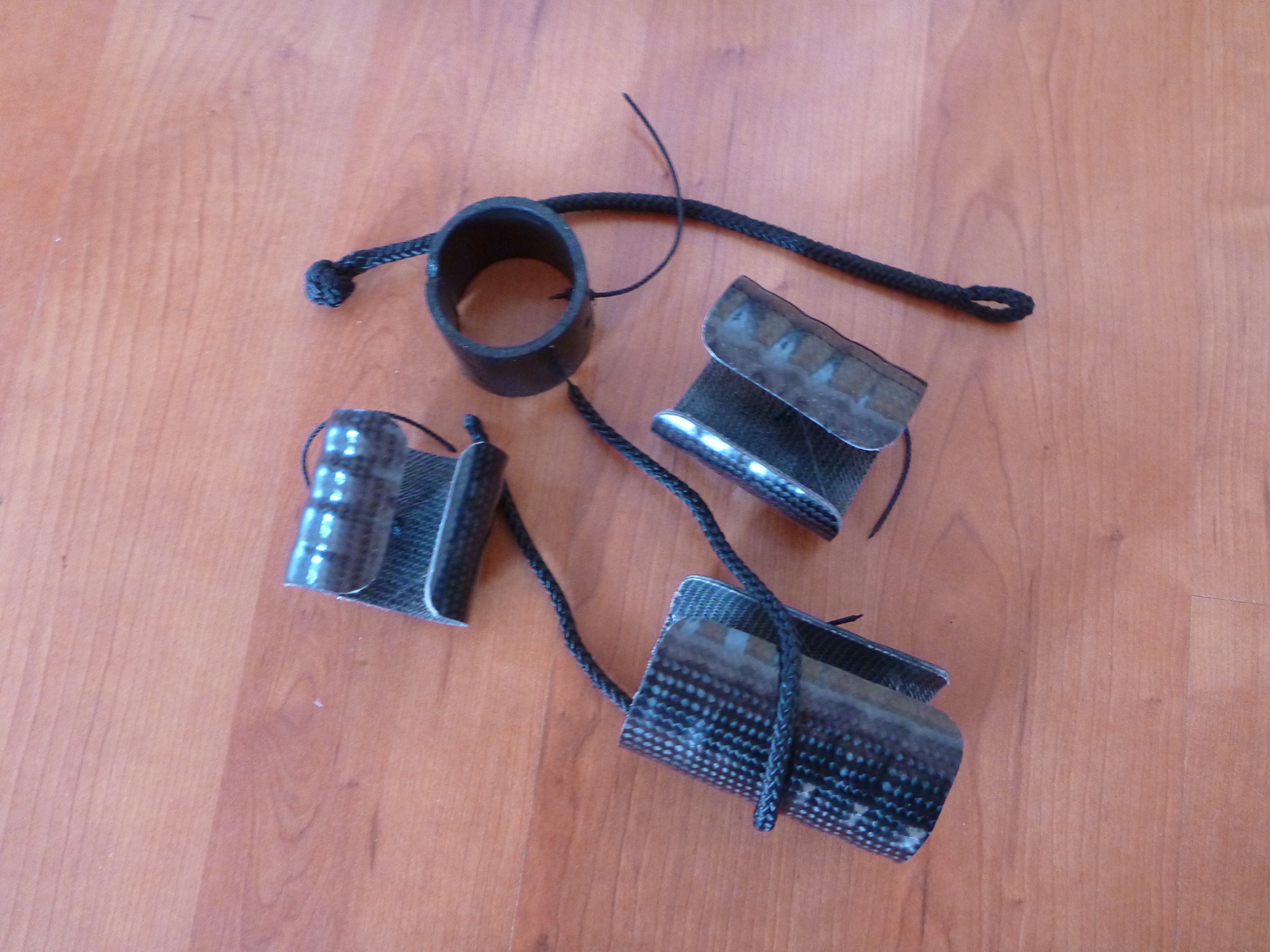

Sheet & traveller, halyard & mast steps for the 5.4 sqm dacron sail
 |
 |
| A soft, braided, very light and floatable sheet. A solid, pre-stretched halyard. We make mast steps ourselves; they are simply clicked over the mast. Two deck fittings / D-rings (see below) and a 3 mm line for the traveller. |
| Sheet & traveller, halyard, mast steps: CHF 95.-
plus shipping This price is valid til 30.06.2024 |
Lashing fittings / D-rings
 |
 |
 |
 |
| from kevlarTM.
New!
Now also made of carbon. For attaching tensioning straps, deck nets...
and for everything that must be lashed in the boat: flotation and luggage. These fittings are beautiful, elegant alternatives to conventional fittings, D-rings and brackets. With a weight of 2-3 g, they are around 100% lighter than conventional fittings. And they are safe: you can't hurt yourself or get clothes or a kneecap caught. The fittings are securely glued in with epoxy or two-component adhesive and look great on exposed laminate or wood. 25 x 36 mm base, 3 mm braided line. 100% made in Switzerland. |
| Lashing fittings / D-rings: CHF 8.50
per piece plus shipping in a letter This price is valid til 30.06.2024 |
